Vertical Spindle Pumps

The VSE Vertical Spindle Pump Range was developed using over 50 years’ experience gained with the Pompie and VPM Air Driven Pumps and the VPM Electric Vertical Spindle Pump.

SPECIFICATIONS

VSE 50-230 22kW/2P
Dimensions excl. Motor LxW 1240 x 380mm
Max Static Head 78m
Max Output Delivery 32 l/s @ 24m
Max Eff 20 l/s @ 51m
Discharge Flange P.C.D. 110mm
Flange Bolt Hole Diameter 18mm
Discharge Diameter 50mm
Material - Volute & Impeller 27% Chrome Iron

Click on the graph to enlarge

vse-50-2p-vertical-spindle-pump-graph

SPECIFICATIONS

VSE 50-250 7.5kW/4P
Dimensions excl. Motor LxW 1240 x 380mm
Max Static Head 21m
Max Output Delivery 17 l/s @ 7m
Max Eff 11 l/s @ 14m
Discharge Flange P.C.D. 110mm
Flange Bolt Hole Diameter 18mm
Discharge Diameter 50mm
Material - Volute & Impeller 27% Chrome Iron

Click on the graph to enlarge

vse-50-4p-vertical-spindle-pump-graph

SPECIFICATIONS

VSE 80-230 37kW/2P
Dimensions excl. Motor LxW 1265 x 410mm
Max Static Head 90m
Max Output Delivery 44.5 l/s @ 32m
Max Eff 30.5 l/s @ 62m
Discharge Flange P.C.D. 150mm
Flange Bolt Hole Diameter 18mm
Discharge Diameter 80mm
Material - Volute & Impeller 27% Chrome Iron

Click on the graph to enlarge

vse-80-2p-vertical-spindle-pump-graph

SPECIFICATIONS

VSE 80-250 15Kw/4P
Dimensions excl. Motor LxW 1265 x 410mm
Max Static Head 22m
Max Output Delivery 34 l/s @ 8m
Max Eff 23 l/s @ 13.5m
Discharge Flange P.C.D. 150mm
Flange Bolt Hole Diameter 18mm
Discharge Diameter 80mm
Material - Volute & Impeller 27% Chrome Iron

Click on the graph to enlarge

vse-80-4p-vertical-spindle-pump-graph

SPECIFICATIONS

VSE 100-210 37kW/2P
Dimensions excl. Motor LxW 1315 x 510mm
Max Static Head 52m
Max Output Delivery 58 l/s @ 22m
Max Eff 41.5 l/s @ 36m
Discharge Flange P.C.D. 170mm
Flange Bolt Hole Diameter 18mm
Discharge Diameter 100mm
Material - Volute & Impeller 27% Chrome Iron

Click on the graph to enlarge

vse-100-2p-vertical-spindle-graph

SPECIFICATIONS

VSE 100-270 15Kw/4P
Dimensions excl. Motor LxW 1315 x 510mm
Max Static Head 25m
Max Output Delivery 55.5 l/s @ 11m
Max Eff 39 l/s @ 17m
Discharge Flange P.C.D. 170mm
Flange Bolt Hole Diameter 18mm
Discharge Diameter 100mm
Material - Volute & Impeller 27% Chrome Iron

Click on the graph to enlarge

vse-100-4p-vertical-spindle-pump-graph

SPECIFICATIONS

VSE 100-270 15Kw/4P
Dimensions excl. Motor LxW 1315 x 510mm
Max Static Head 25m
Max Output Delivery 55.5 l/s @ 11m
Max Eff 39 l/s @ 17m
Discharge Flange P.C.D. 170mm
Flange Bolt Hole Diameter 18mm
Discharge Diameter 100mm
Material - Volute & Impeller Polyurethane Lined SG Cast Iron

Click on the graph to enlarge

vse-100-4p-vertical-spindle-pump-graph

SPECIFICATIONS

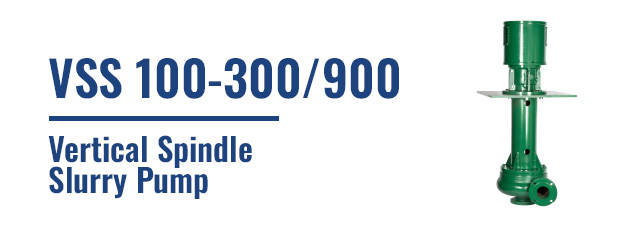

VSS 100-300 22kW/4P
Dimensions excl. Motor LxW 1560 x 700mm
Max Static Head 31m
Max Output Delivery 70 l/s @ 23m
Max Eff 50 l/s @ 28m
Discharge Flange P.C.D. 190mm
Flange Bolt Hole Diameter 20mm
Discharge Diameter 100mm
Material - Volute & Impeller 27% Chrome Iron

Click on the graph to enlarge

vss-100-graph

SPECIFICATIONS

VSE 100-270 15Kw/4P
Dimensions excl. Motor LxW 1315 x 510mm
Max Static Head 25m
Max Output Delivery 55.5 l/s @ 11m
Max Eff 39 l/s @ 17m
Discharge Flange P.C.D. 170mm
Flange Bolt Hole Diameter 18mm
Discharge Diameter 100mm
Material - Volute & Impeller 27% Chrome Iron

Click on the graph to enlarge

eco-vsp-graph
